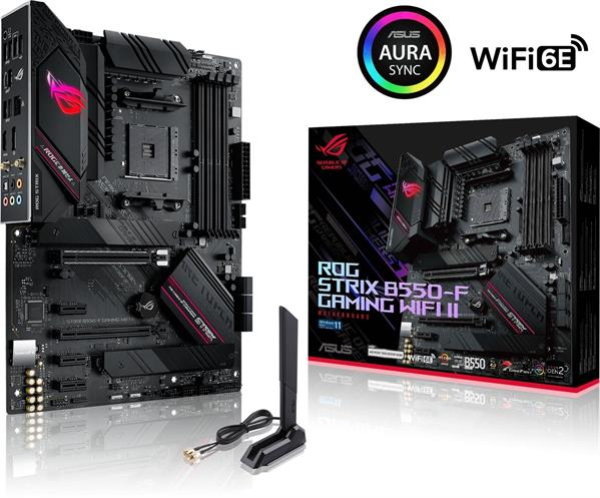

ASUS ROG Strix B550-F Gaming WIFI II/AM4
Formfaktor: ATX
Sockel: AMD AM4
Chipsatz: AMD B550
CPU-Kompatibilität: Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, ohne TDP-Einschränkung (Hersteller-Liste)
RAM: 4x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 128GB (UDIMM)
Erweiterungsslots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Anschlüsse extern: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (10Gb/?s, B550), 1x USB-A 3.1 (10Gb/?s, B550), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Intel I225-V), 5x Klinke, 1x Toslink
Anschlüsse intern: 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x Thunderbolt-Header 13-Pin (14-1), 1x COM Debug-Header
Header Kühlung: 2x CPU-Lüfter 4-Pin, 3x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Thermal-Sensor
Header Beleuchtung: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Buttons/Switches: USB BIOS Flashback (extern)
Audio: 7.1 (Realtek ALC1220/?ASUS SupremeFX), DTS Sound Unbound
Grafik: iGPU
Wireless: Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2), Bluetooth 5.2
RAID-Level: 0/?1/?10 (B550)
Multi-GPU: AMD 2-Way-CrossFireX (x16/?x4)
Stromanschlüsse: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM: 14 virtuelle Phasen (12+2), 4 reale Phasen (4+1), PWM-Controller: ASP1106 (RT3667BE, max. 6 Phasen)
MOSFETs CPU: 12x 50A SiC639
MOSFETs SoC: 2x 50A SiC639
Beleuchtung: RGB, 1 Zone (I/?O-Abdeckung)
BIOS: 1x 32MB (256Mb)
Info: Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/?O-Blende integriert, 2x M.2-Passivkühler, ECC-Unterstützung, Onboard TPM 2.0 Unterstützung (AMD fTPM, zusätzlicher Herstellerlink beachten)
Herstellergarantie: drei Jahre (Abwicklung über Händler)
