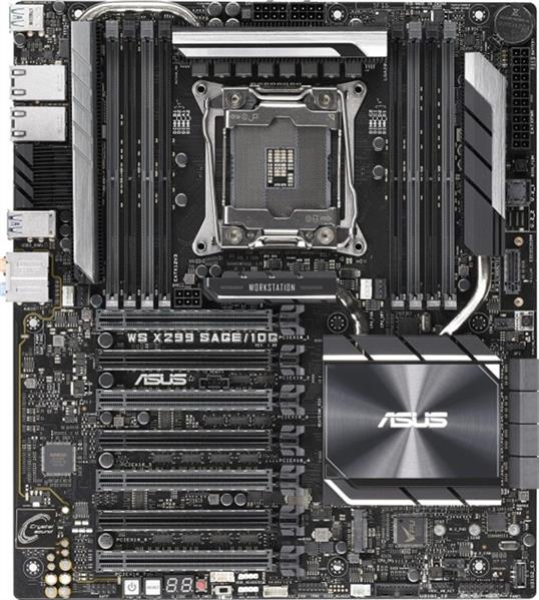

Formfaktor E-ATX (SSI CEB)
Sockel Intel 2066
Chipsatz Intel X299 (Plattform "Basin Falls")
VRM unbekannt
MOSFETs CPU unbekannt
MOSFETs SoC unbekannt
RAM 8x DDR4 DIMM, quad PC4-33600U/?DDR4-4200 (OC), max. 128GB (UDIMM)
Erweiterungsslots 7x PCIe 3.0 x16 (4x x16, 3x x8), 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4, 22110/?2280/?2260/?2242), 1x SFF-8643/?U.2/?Mini-SAS (PCIe 3.0 x4)

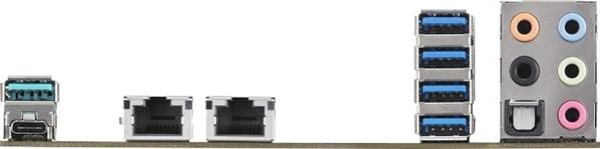

Anschlüsse extern 1x USB-C 3.1 (10Gb/?s, ASM3142), 1x USB-A 3.1 (10Gb/?s, ASM3142), 4x USB-A 3.0 (5Gb/?s), 2x 10GBase-T (X550-AT2), 5x Klinke, 1x Toslink
Anschlüsse intern 1x USB-C 3.1 Key-A Header (10Gb/?s, ASM3142), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 8x SATA 6Gb/s (X299), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x seriell, 1x VROC-Header
Header Kühlung 2x CPU-Lüfter 4-Pin, 2x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Pumpe 4-Pin, 1x Lüfter 5-Pin
Header Beleuchtung 1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen1)
Buttons/Switches Power-Button (intern), Reset-Button (intern), MemOK-Button (intern), Clear-CMOS-Button (intern), XMP-Switch (intern)
Audio 7.1 (Realtek ALC1220), DTS Connect, DTS Headphone:X
RAID-Level 0/?1/?5/?10 (X299)
Multi-GPU NVIDIA 4-Way-SLI (x16/?x16, x16/?x16/?x16, x16/?x16/?x16/?x16), AMD 4-Way-CrossFireX (x16/?x16, x16/?x16/?x16, x16/?x16/?x16/?x16)
Stromanschlüsse 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
Besonderheiten Audio+solid capacitors, Diagnostic LED (Segmentanzeige), 2x PLX PEX 8747 Switch
Herstellergarantie drei Jahre
