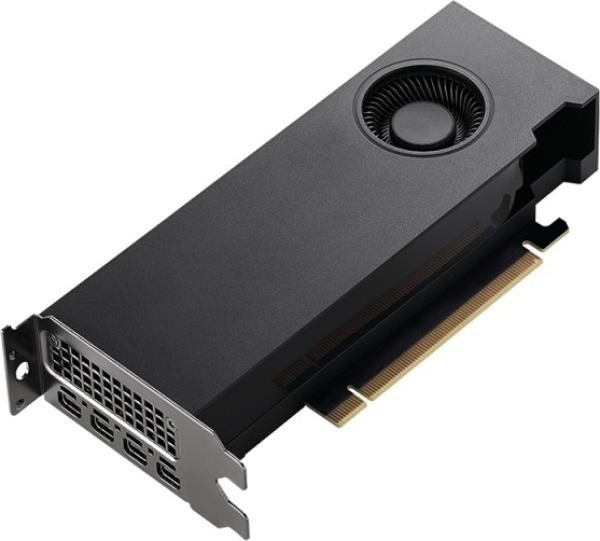

PNY RTX A2000, 12GB GDDR6/4xmDP/ohne Adapter
GPU: NVIDIA RTX A2000
Speicher: 12GB GDDR6 mit ECC-Modus, 192bit, 12Gbps, 1500MHz, 288GB/?s
Übertaktung: -
Takt Boost: 1200MHz
Takt Basis: 562MHz
Kühlung: 1x Radial-Lüfter (40mm)
TDP/TGP: 70W (NVIDIA)
Stromanschlüsse: -

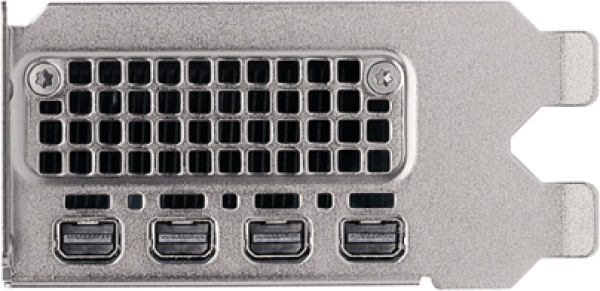

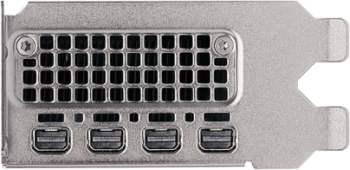

Schnittstellen: 4x Mini DisplayPort 1.4a
Anbindung: PCIe 4.0 x16
Besonderheiten: NVIDIA-Referenzdesign
Gesamthöhe: Dual Slot
Abmessungen: 167.64x68.58mm (LxB)
Bauform: PCIe-Karte (low profile)
Slotblende: low profile + full height (Lieferumfang)
Rechenleistung: 7.99 TFLOPS (FP16), 7.99 TFLOPS (FP32), 0.12 TFLOPS (FP64)
Herstellergarantie: drei Jahre (Abwicklung über Händler oder Hersteller)
Chip-Daten: Chip-Architektur
Ampere (ab 2020/?Q3): Chip-Bezeichnung
GA106-850-A1: Chip-Konfiguration
26SM (3328 ALUs /? 104 TMUs /? 48 ROPs), 26 RT Cores, 104 Tensor Cores, 3MB L2-Cache: Chip-Fertigung
Samsung 8nm: Chip-Größe
276mm², monolithisch, 12 Mrd. Transistoren: Chip-Funktionen
Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen), 10bit Farbkanaltiefe, HDCP 2.3: API-Unterstützung
DirectX 12 Ultimate (12_2) /? CUDA 8.6 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.7: Transcoding-Engine
1x NVENC (7th Gen, max. Sessions: unbeschränkt), 1x NVDEC (5th Gen), Info: Encoding
H.265 (4K YUV 4:2:0 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support), H.264 (YUV 4:2:0 /? YUV 4:4:4 /? Lossless): Decoding
AV1 (8bit /? 10bit), H.265 (8bit 4:2:0 /? 10bit 4:2:0 /? 12bit 4:2:0 /? 8bit 4:4:4 /? 10bit 4:4:4 /? 12bit 4:4:4), H.264, VP9 (8bit /? 10bit /? 12bit), VP8, VC-1, MPEG-2, MPEG-1: 0
