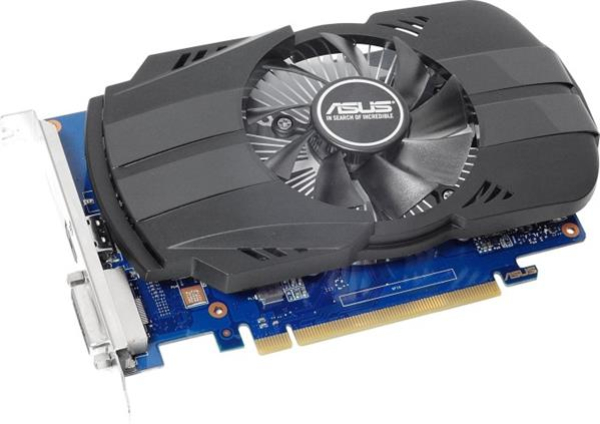

ASUS Phoenix GeForce GT 1030 OC/PH-GT1030-O2G/2GB GDDR5/DVI/HDMI
GPU: NVIDIA GeForce GT 1030
Speicher: 2GB GDDR5, 64bit, 6Gbps, 1500MHz, 48GB/s
Übertaktung: +63MHz Boost (OC-Profil), +38MHz Boost (Standard-Profil), +51MHz Basis (OC-Profil), +25MHz Basis (Standard-Profil)
Takt Boost: 1506MHz (Standard-Profil), 1531MHz (OC-Profil)
Takt Basis: 1252MHz (Standard-Profil), 1278MHz (OC-Profil)
Kühlung: 1x Axial-Lüfter (80mm)
TDP/TGP: 30W (NVIDIA)
Stromanschlüsse: -
Schnittstellen: 1x DVI, 1x HDMI 2.0b
Anbindung: PCIe 3.0 x16 (x4)
Info: Taktprofile (Default Mode/OC Mode)
Gesamthöhe: Dual Slot
Abmessungen: 184x111x36mm (LxBxH)
Bauform: PCIe-Karte (full height)
Slotblende: full height
Rechenleistung: 0.02 TFLOPS (FP16), 1.18 TFLOPS (FP32), 0.04 TFLOPS (FP64)
Herstellergarantie: drei Jahre (Abwicklung über Händler)
Chip-Daten:
Chip-Architektur: Pascal (ab 2016/Q3)
Chip-Bezeichnung: GP108-300-A1
Chip-Konfiguration: 3SM (384 ALUs / 24 TMUs / 16 ROPs), 512kB L2-Cache
Chip-Fertigung: Samsung 14nm
Chip-Größe: 74mm², monolithisch, 1.8 Mrd. Transistoren
Chip-Funktionen: HDCP 2.2
API-Unterstützung: DirectX 12 (12_1) / CUDA 6.1 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.4
Transcoding-Engine: 1x NVDEC (3rd Gen),
Encoding: -
Decoding: H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0), H.264, VP9 (8bit / 10bit / 12bit), VC-1, MPEG-2, MPEG-1
Multi-GPU-Anbindung: -
Erstveröffentlichung (Serie): 17.05.2017, UVP: 79 USD (NVIDIA)
