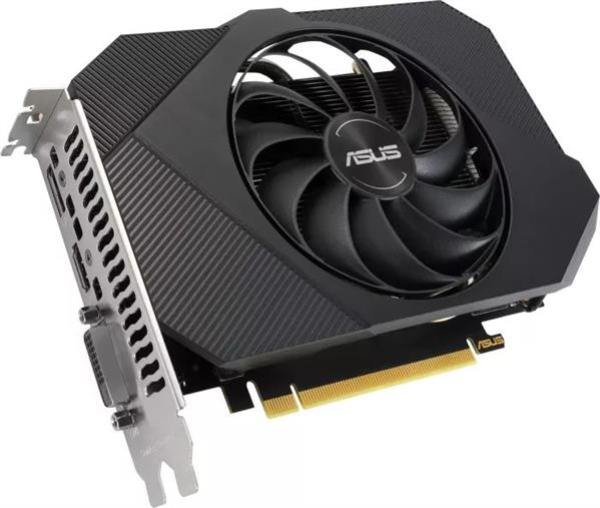

ASUS Phoenix GeForce RTX 3050 V2/PH-RTX3050-8G-V2/8GB GDDR6/DVI/HDMI/DP
GPU: NVIDIA GeForce RTX 3050
Speicher: 8GB GDDR6, 128bit, 14Gbps, 1750MHz, 224GB/s
Übertaktung: +30MHz Boost (OC-Profil)
Takt Boost: 1777MHz (Standard-Profil), 1807MHz (OC-Profil)
Takt Basis: 1552MHz (Standard-Profil), 1552MHz (OC-Profil)
Kühlung: 1x Axial-Lüfter (100mm)
TDP/TGP: 130W (NVIDIA)
Stromanschlüsse: 1x 6-Pin PCIe
Schnittstellen: 1x DVI, 1x HDMI 2.1, 1x DisplayPort 1.4a
Anbindung: PCIe 4.0 x16 (x8)
Info: Taktprofile (Default Mode/OC Mode)
Gesamthöhe: Dual Slot
Abmessungen: 178x128x40mm (LxBxH)
Bauform: PCIe-Karte (full height)
Slotblende: full height
Rechenleistung: 9.25 TFLOPS (FP16), 9.25 TFLOPS (FP32), 0.14 TFLOPS (FP64)
Herstellergarantie: drei Jahre (Abwicklung über Händler)
Chip-Daten:
Chip-Architektur: Ampere (ab 2020/Q3)
Chip-Bezeichnung: GA106-150-KA-A1
Chip-Konfiguration: 20SM (2560 ALUs / 80 TMUs / 32 ROPs), 20 RT Cores, 80 Tensor Cores, 2MB L2-Cache
Chip-Fertigung: Samsung 8nm
Chip-Größe: 276mm², monolithisch, 12 Mrd. Transistoren
Chip-Funktionen: Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen), HDCP 2.3
API-Unterstützung: DirectX 12 Ultimate (12_2) / CUDA 8.6 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine: 1x NVENC (7th Gen, max. Sessions: 5), 1x NVDEC (5th Gen),
Encoding: H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding: AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU-Anbindung: -
Erstveröffentlichung (Serie): 04.01.2022, UVP: 249 USD (NVIDIA)
