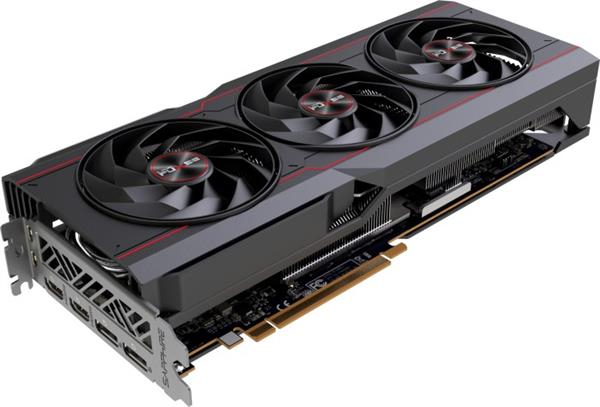

GPU: AMD Radeon RX 7900 XTX
Speicher: 24GB GDDR6, 384bit, 20Gbps, 2500MHz, 960GB/s
Übertaktung: +25MHz Boost, +30MHz Game
Takt Boost: 2330-2525MHz
Takt Basis: unbekannt
Kühlung: 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
TDP/TGP: 355W (AMD), max. 370W (Sapphire)
Stromanschlüsse: 3x 8-Pin PCIe
Schnittstellen: 2x HDMI 2.1, 2x DisplayPort 2.1
Anbindung: PCIe 4.0 x16
Info: Backplate
Gesamthöhe: Triple Slot (2.7 Slots)
Abmessungen: 313x133.75x52.67mm (LxBxH)
Bauform: PCIe-Karte (full height)
Slotblende: full height
Rechenleistung: 124.11 TFLOPS (FP16), 62.05 TFLOPS (FP32), 3.88 TFLOPS (FP64)
Chip-Daten:
Chip-Architektur: RDNA 3 (ab 2022/Q4)
Chip-Bezeichnung: Navi 31 XTX
Chip-Konfiguration: 96CU (6144 ALUs / 384 TMUs / 192 ROPs), 96 RT Cores, 6MB L2-Cache, 96MB L3-Cache
Chip-Fertigung: TSMC 5nm + TSMC 6nm
Chip-Größe: 529mm², Multi-Chip-Modul (6 MCM-Chiplets), 57.7 Mrd. Transistoren
Chip-Funktionen: Raytracing, AMD Infinity Cache (96MB), HDCP 2.3
API-Unterstützung: DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine: VCN 4.0,
Encoding: AV1, H.265, H.264
Decoding: AV1, H.265, H.264, VP9
