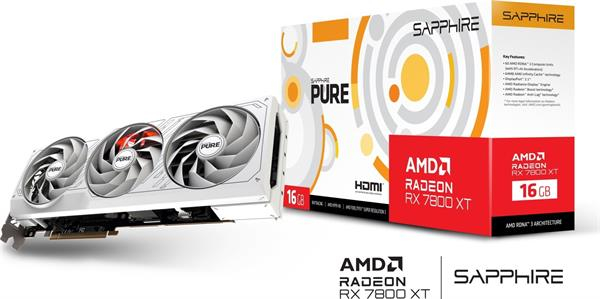

Sapphire Pure Radeon RX 7800 XT/16GB GDDR6/2xHDMI+2xDP/lite retail/weiss
GPU: AMD Radeon RX 7800 XT
Speicher: 16GB GDDR6, 256bit, 19.5Gbps, 2438MHz, 624GB/?s
Takt Basis: unbekannt
Takt Boost: 2169-2475MHz
Übertaktung: +45MHz Boost, +45MHz Game
Kühlung: 3x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus
TDP/TGP: 263W (AMD), max. 270W (Sapphire)
Stromanschlüsse: 2x 8-Pin PCIe
Anschlüsse: 2x HDMI 2.1, 2x DisplayPort 2.1 UHBR13.5
Anbindung: PCIe 4.0 x16
Besonderheiten: LED-Beleuchtung (rot), Backplate, White Build-kompatibel (weiße Farbgebung)
Gesamthöhe: Triple Slot (2.5 Slots)
Abmessungen: 320x128.75x52.57mm (LxBxH)
Bauform: PCIe-Karte (full height)
Slotblende: full height
Rechenleistung: 76.03 TFLOPS (FP16), 38.02 TFLOPS (FP32), 1.19 TFLOPS (FP64)
Chip-Daten: Chip-Architektur
RDNA 3 (ab 2022/?Q4): Chip-Bezeichnung
Navi 32 XT: Chip-Konfiguration
60CU (3840SP /? 240TMU /? 96ROP), 60 RT Cores, 4MB L2-Cache, 64MB L3-Cache: Chip-Fertigung
TSMC 5nm + TSMC 6nm: Chip-Größe
346mm², Multi-Chip-Modul (4 MCM-Chiplets): Chip-Funktionen
Raytracing, AMD Infinity Cache (64MB), HDCP 2.3: API-Unterstützung
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.2 /? OpenGL 4.6 /? Shader Model 6.7: Transcoding-Engine
VCN 4.0, Info: Encoding
AV1, H.265, H.264: Decoding
AV1, H.265, H.264, VP9: 0
Speicher: 16GB GDDR6, 256bit, 19.5Gbps, 2438MHz, 624GB/?s
Takt Basis: unbekannt
Takt Boost: 2169-2475MHz
Übertaktung: +45MHz Boost, +45MHz Game
Kühlung: 3x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus
TDP/TGP: 263W (AMD), max. 270W (Sapphire)
Stromanschlüsse: 2x 8-Pin PCIe
Anschlüsse: 2x HDMI 2.1, 2x DisplayPort 2.1 UHBR13.5
Anbindung: PCIe 4.0 x16
Besonderheiten: LED-Beleuchtung (rot), Backplate, White Build-kompatibel (weiße Farbgebung)
Gesamthöhe: Triple Slot (2.5 Slots)
Abmessungen: 320x128.75x52.57mm (LxBxH)
Bauform: PCIe-Karte (full height)
Slotblende: full height
Rechenleistung: 76.03 TFLOPS (FP16), 38.02 TFLOPS (FP32), 1.19 TFLOPS (FP64)
Chip-Daten: Chip-Architektur
RDNA 3 (ab 2022/?Q4): Chip-Bezeichnung
Navi 32 XT: Chip-Konfiguration
60CU (3840SP /? 240TMU /? 96ROP), 60 RT Cores, 4MB L2-Cache, 64MB L3-Cache: Chip-Fertigung
TSMC 5nm + TSMC 6nm: Chip-Größe
346mm², Multi-Chip-Modul (4 MCM-Chiplets): Chip-Funktionen
Raytracing, AMD Infinity Cache (64MB), HDCP 2.3: API-Unterstützung
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.2 /? OpenGL 4.6 /? Shader Model 6.7: Transcoding-Engine
VCN 4.0, Info: Encoding
AV1, H.265, H.264: Decoding
AV1, H.265, H.264, VP9: 0
