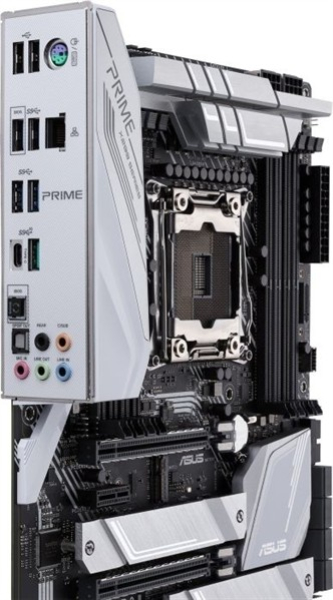

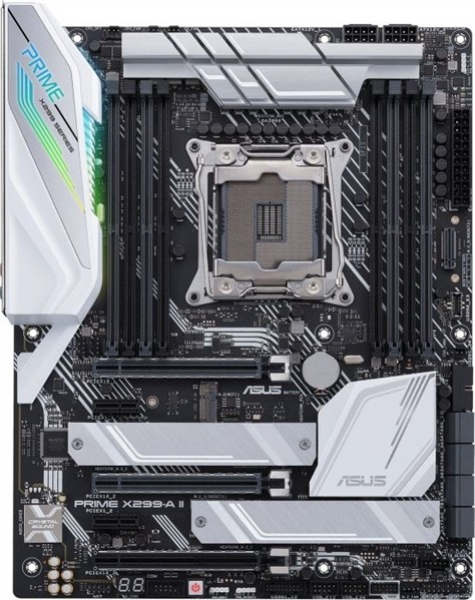

Formfaktor - ATX
Chipsatz - Intel X299 (Plattform "Glacier Falls")
RAM - 8x DDR4 DIMM, quad PC4-34133U/DDR4-4266 (OC), max. 256GB (UDIMM)
Erweiterungsslots - 3x PCIe 3.0 x16 (2x x16, 1x x8), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (PCIe, 2230)

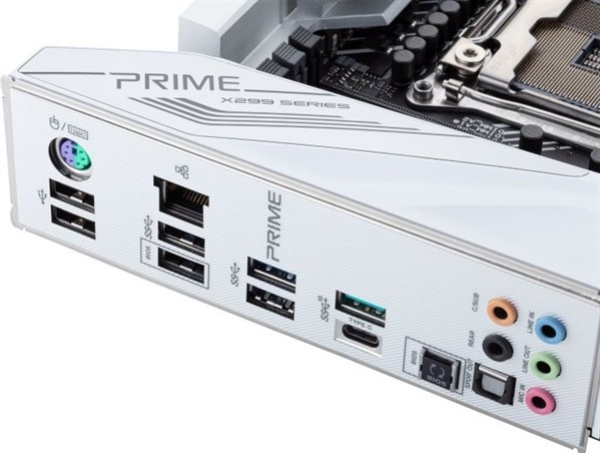

Anschlüsse extern - 1x USB-C 3.1 (ASM3142), 1x USB-A 3.1 (ASM3142), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Intel I219-V), 5x Klinke, 1x Toslink, 1x PS/2 Combo
Anschlüsse intern - 1x USB-C 3.1 Key-A Header (ASM3142), 2x USB 3.0 Header (4x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 8x SATA 6Gb/s (X299), 1x Thunderbolt-Header 5-Pin, 1x VROC-Header, 1x ASUS Node
Header Kühlung - 2x CPU-Lüfter 4-Pin, 4x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Pumpe 4-Pin, 1x Thermal-Sensor
Header Beleuchtung - 2x RGB-Header 4-Pin (5050), 1x RGB-Header 3-Pin (WS2812B)
Buttons/Switches - Power-Button (intern), USB BIOS Flashback (extern)
Audio - 7.1 (Realtek ALC1220), DTS:X Ultra
RAID-Level - 0/1/5/10 (X299)
Multi-GPU - NVIDIA 3-Way-SLI (x16/x16, x16/x16/x8), AMD 3-Way-CrossFireX (x16/x16, x16/x16/x8)
Stromanschlüsse - 1x 24-Pin ATX, 2x 8-Pin EPS12V
Beleuchtung - RGB, 1 Zone (I/O-Abdeckung)
Besonderheiten - Audio+solid capacitors, Diagnostic LED (Segmentanzeige), Diagnostic LED (Indikatoren), 2x M.2-Passivkühler
Herstellergarantie - drei Jahre
