Formfaktor E-ATX (SSI EEB)
Sockel AMD sWRX8
Chipsatz AMD WRX80
CPU-Kompatibilität Ryzen Threadripper PRO 3000, ohne TDP-Einschränkung (Hersteller-Liste)
VRM 16 virtuelle Phasen
RAM 8x DDR4 DIMM, octa PC4-25600U/?DDR4-3200, max. 256GB (UDIMM), 2TB (RDIMM), 2TB (3DS RDIMM)
Erweiterungsslots 7x PCIe 4.0 x16, 2x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242, CPU), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242, WRX80), 2x SFF-8643/?U.2/?Mini-SAS (PCIe 4.0 x4, WRX80)

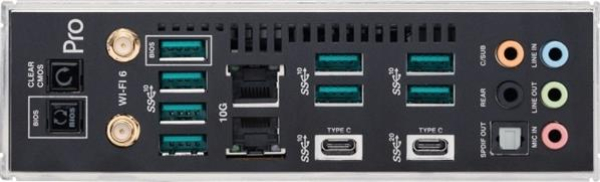

Anschlüsse extern 1x USB-C 3.2 (20Gb/?s, ASM3242), 1x USB-C 3.1 (10Gb/?s), 8x USB-A 3.1 (10Gb/?s), 2x 10GBase-T (Intel X550-AT2), 5x Klinke, 1x Toslink
Anschlüsse intern 1x USB-C 3.1 Key-A Header (10Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (WRX80), 4x SATA 6Gb/s (ASM1061), 1x seriell, 1x TPM-Header, 1x VGA-Header, 1x I2C-Header, 1x SMBUS-Header, 1x RTC-Header, 1x Location Button Header, 2x LAN-LED-Header, 1x Location-LED-Header, 1x Cardreader (microSD)
Header Kühlung 2x CPU-Lüfter 4-Pin, 8x Lüfter 4-Pin, 1x Thermal-Sensor
Buttons/Switches Power-Button (intern), Clear-CMOS-Button (extern), FlexKey-Button (intern), USB BIOS Flashback (extern), IPMI-Switch (intern), VGA-Switch (intern), BMC-Switch (intern), PSU-Switch (intern)
Audio 7.1 (Realtek ALC4080), DTS:X Ultra
Wireless Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX200), Bluetooth 5.2
RAID-Level 0/?1/?10 (WRX80)
Multi-GPU NVIDIA 4-Way-SLI (x16/?x16, x16/?x16/?x16, x16/?x16/?x16/?x16)
Stromanschlüsse 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe, 2x 6-Pin PCIe
BIOS 1x 32MB (256Mb)
Besonderheiten Audio+solid capacitors, Diagnostic LED (Segmentanzeige), Diagnostic LED (LED-Indikatoren), 3x M.2-Passivkühler, I/?O-Blende integriert, Backplate, IPMI 2.0, ECC-Unterstützung
Herstellergarantie drei Jahre (Abwicklung über Händler)
